Anaerobic chambers with oxygen and hydrogen monitoring system
Key advantages of Maworde anaerobic chambers with oxygen and hydrgoen monitoring system
Dual Gas Sensing: Continuous O₂/H₂ detection ensures optimal anaerobiosis with low gas consumption after stabilization. Quick one-click O₂ sensor calibration.
Superior Circulation: Unique air duct design delivers homogeneous gas distribution for consistent experimental results across the entire chamber.

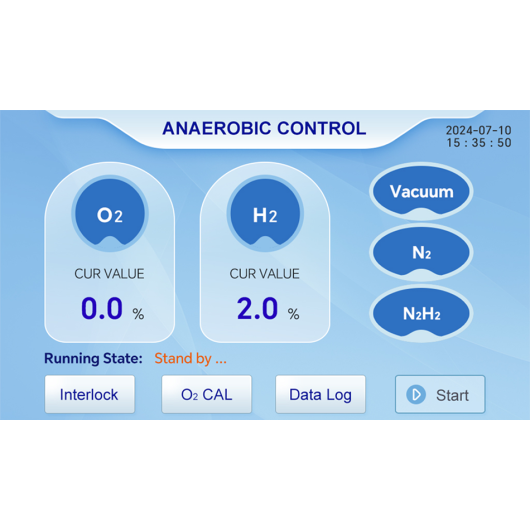

User-Friendly Operation: Intuitive single-page touchscreen interface shows all parameters (O2, H2, N2, vacuum, pressure). Direct Entry System (DES) with detachable, skin-friendly gloves maintains isolation during transfers.
Flexible Climate Control: Optional temperature regulation (ambient to 45°C, 0.1°C steps) and incubator for 66 Petri dishes.
Engineered for microbiology requiring ultra-precise, low-maintenance anaerobic environments.
Models and size comparison of Maworde anaerobic chmabers
YR-L Anaerobic chamber with oxygen and hydrogen monitoring system 273 l, interlock 12,7 l. Petri dishes capacity: max. 950, interlock 44.
YR-LZ Anaerobic chamber with oxygen and hydrogen monitoring system 273 l, interlock 27 l. Petri dishes capacity: max. 950, interlock 66.

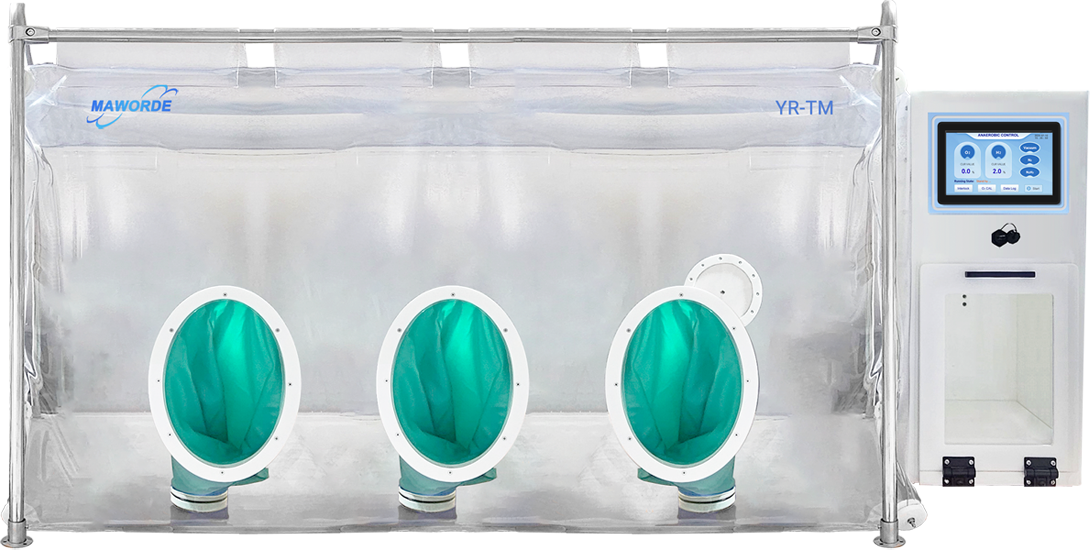

YR-TM Anaerobic chamber with oxygen and hydrogen monitoring system 399 l, interlock 12,7 l. Petri dishes capacity: max. 1450, interlock 44.
YR-TMZ Anaerobic chamber with oxygen and hydrogen monitoring system 399 l, interlock 27 l. Petri dishes capacity: max. 1450, interlock 66.
YR-Q Anaerobic chamber with oxygen and hydrogen monitoring system 525 l, interlock 27 l. Petri dishes capacity: max. 1950, interlock 44.
YR-QZ Anaerobic chamber with oxygen and hydrogen monitoring system 525 l, interlock 39 l. Petri dishes capacity: max. 1950, interlock 171.
Other sizes are also available. Ask about customization options!
- YRC-01 Palladium Catalyst Box (single layer)
- YRC-02 Palladium Catalyst Box (double layer)
- YRC-01T Temperature-Controlled Palladium Catalyst Box (single layer) - room temp. +3°C to 45°C, in 0.1°C increment
- YRC-02T Temperature-Controlled Palladium Catalyst Box (double layer) - room temp. +3°C to 45°C, in 0.1°C increment
- YR001 Temperature Control Incubator, capacity: 66 pcs. 90mm petri dishes, room temp. +3°C to 45°C, in 0.1°C increment
- YR012 Humidity control
- YR002 HEPA Filtration System with YRC-02
- YR003 Replaceable sleeves
- YR004 CO2 manual control
- YR017 Cooling system with dehumidification, room temperature-5℃ to room temperature
- YR016 Additional Gas Port for Anaerobic Jar (Button)
- YR009 <5ppm oxygen option with YRC-01
- YR013 PPM level interlock
- YR014 Desulfurization Catalyst Box
- YR011 Internal sockets
- YR005 Cable port
- YR006 Vac Line Connection Port
- YR007 Gas sample port
- YR008 Extra portable O2 meter
- YR009 <5ppm oxygen option
- YR010 PPM O2 meter, monitoring range 0 - 500 ppm, with ±5 ppm accuracy, storage conditions < 0.1% O2 level for optimal performance, the O2 sensor is not under warranty
- YR015 Built in PPM O2 sensor, monitoring range 0ppm - 20.0%, with ±50 ppm accuracy
| Termék neve | |
|---|---|
| YR-L Anaerobic chamber with oxygen and hydrogen monitoring system 273 l, interlock 12,7 l | |
| YR-LZ Anaerobic chamber with oxygen and hydrogen monitoring system 273 l, interlock 27 l | |
| YR-TM Anaerobic chamber with oxygen and hydrogen monitoring system 399 l, interlock 12,7 l | |
| YR-TMZ Anaerobic chamber with oxygen and hydrogen monitoring system 399 l, interlock 27 l | |
| YR-Q Anaerobic chamber with oxygen and hydrogen monitoring system 525 l, interlock 27 l | |
| YR-QZ Anaerobic chamber with oxygen and hydrogen monitoring system 525 l, interlock 39 l |
